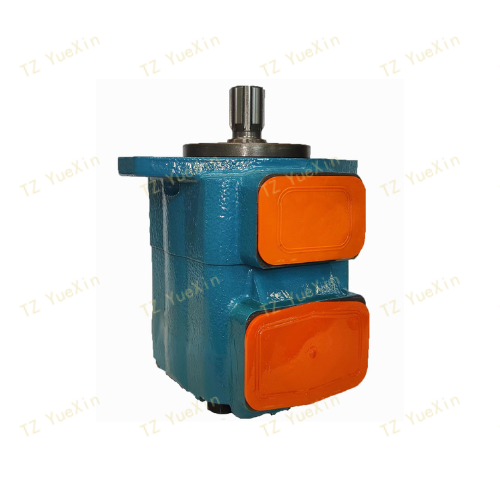

V/VQ Series Vane Pump

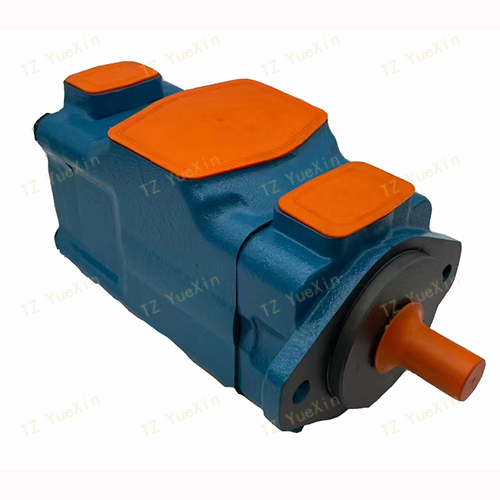

- V/VQ is divided into single pump and pump

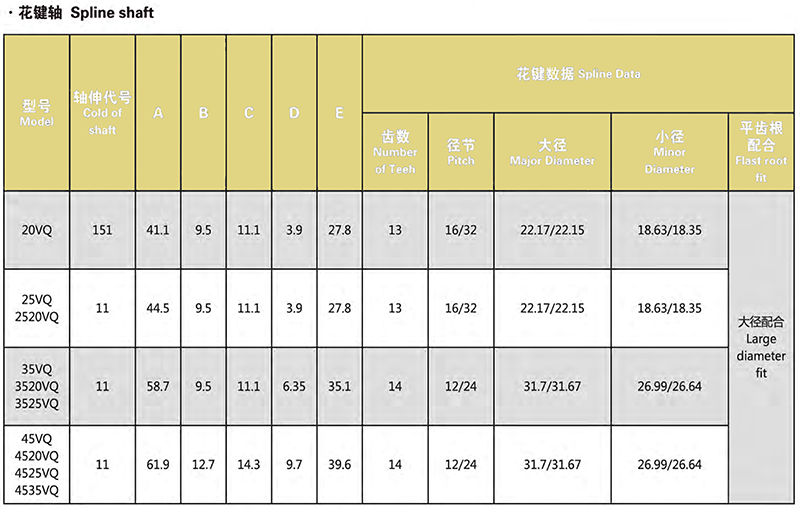

- shaft extensions are divided into circular shafts and spline shafts (customizable with 6-tooth splines)
- Seals can be optionally equipped with fluororubber
Selection considerations:
1. Type and size of shaft extension connection;
2. Location of oil inlet and outlet holes;
3. Specification of oil port flange installation bolts.

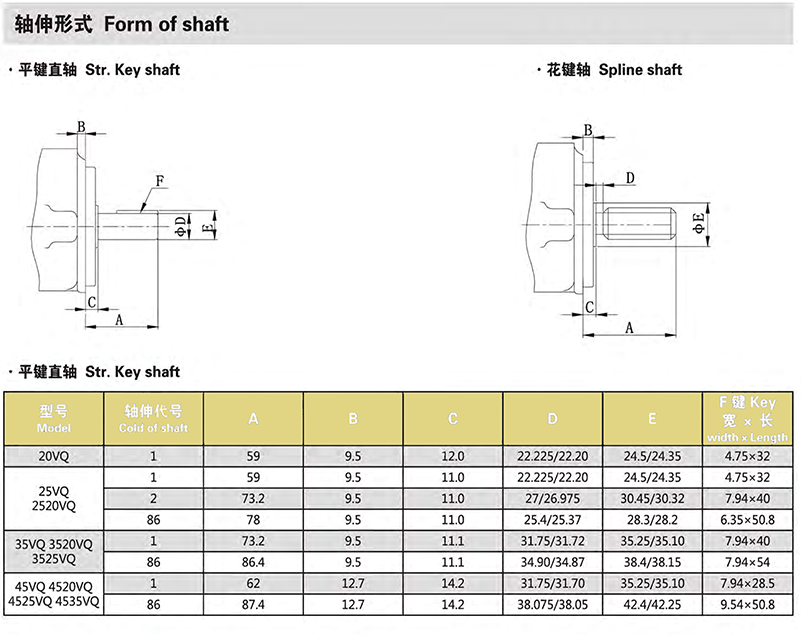

Form of shaft
Application scenarios of V/VQ series vane pumps :
1、The V-series vane pumps is developed to meet the needs of the machine tool industry.
The single pump model is 20/25/35/45V, and the double pump model is 2520/3520/3525/4520/4525/4535V.
The displacement range is 2-75GAL, the maximum pressure is 21MPa, and the speed range is 600-1800rpm.
Widely used in machine tools, die-casting machinery, engineering machinery, plastic machinery, and various hydraulic systems.
The V-series blade pump is developed to meet the needs of the machine tool industry, with a displacement range of 7.5-344mlr, a maximum working pressure of 21MPa, and a speed range of 600-1800rpm. Widely used in machine tools, die-casting machinery, engineering machinery, plastic machinery, and various hydraulic systems.
2. The VQ series vane pump is developed to meet the needs of the construction machinery industry.
The single pump model is 20/25/35/45VQ, and the double pump model is 2520/3520/3525/4520/4525/4535VQ.
The displacement range is 2-75GAL, the maximum pressure is 21MPa, and the speed range is 600-2200rpm.
Widely used in die-casting machinery, engineering machinery, and various hydraulic systems.
For specific product information, please contact sales and use the actual communication results as the standard.
