Parker F11 Piston Quantitative Motor

The Parker F11 series plunger quantitative motor is a hydraulic drive core component developed by Parker Hannifin. With its compact design, high reliability, and excellent performance, it is widely used in industrial and walking machinery fields.

1）Performance advantages

1.  High efficiency and high pressure bearing capacity

The working pressure of the F11 series motor can reach up to 420 bar, and combined with its spherical piston and laminated piston ring design, it significantly reduces internal leakage and improves overall efficiency. The unique timing gear synchronization mechanism and heavy-duty roller bearing configuration enable it to withstand high speeds (up to 14000 rpm) and large loads while reducing energy loss, making it suitable for scenarios with stringent power density requirements.

2.  Compact and lightweight design

The shaft and cylinder body adopt a 40 ° angle structure, greatly reducing the overall size and weight, while supporting multiple installation forms (CETOP, ISO, SAE, SAW), making it easy to integrate into space limited equipment. For example, its weight is only 8.5-12.5 kg, suitable for the lightweight requirements of mobile machinery.

3. Ability to withstand extreme environments

By optimizing material and structural design, the F11 motor has excellent thermal shock resistance, impact resistance, and torsional vibration resistance. Heavy duty roller bearings can withstand high axial and radial loads, and can operate stably even under high or low temperature impacts, making them suitable for harsh working conditions such as mines and oil fields.

4. Flexible adaptability

We offer 6 displacement specifications (5-19 cc), and users can choose different displacements according to their needs, meeting diverse demands from low torque to high torque. The bidirectional rotation design further expands its application range.

2）Application scenarios

1. Logging machinery

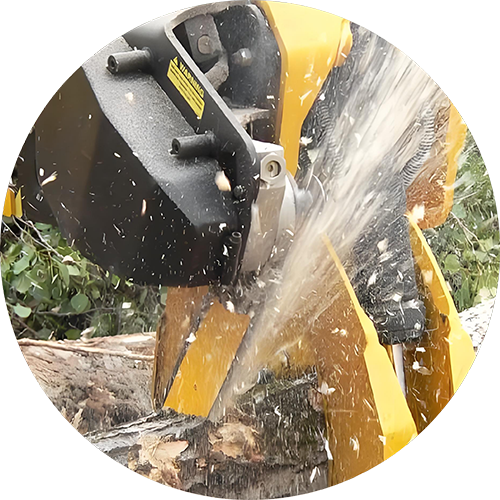

In equipment such as logging machines and gripper saws. F11-05/09 has the characteristics of high rotation speed, stable output, and high efficiency, making it a perfect match for equipment.

2. Energy and Mining

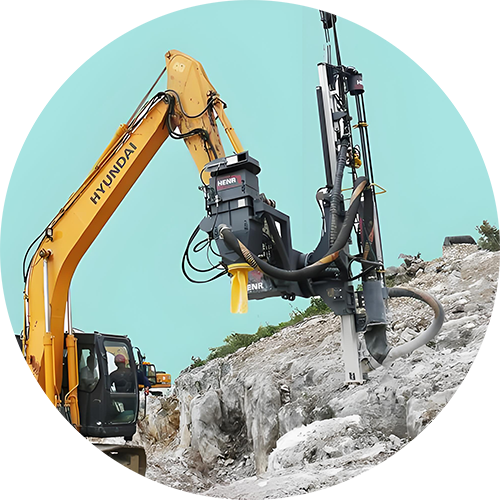

When environmental protection is needed in mining and other scenarios, F11-09 can be matched with rock chisels to build a dust removal system. As a dust removal motor, it has a very good effect in reducing dust flying, improving environmental pollution, and ensuring human health.

Our F11 can perfectly replace the Parker brand, achieve high cost-effectiveness, and gain market competitiveness.

• For specific product information, please contact sales and use the actual communication results as the standard.


•
