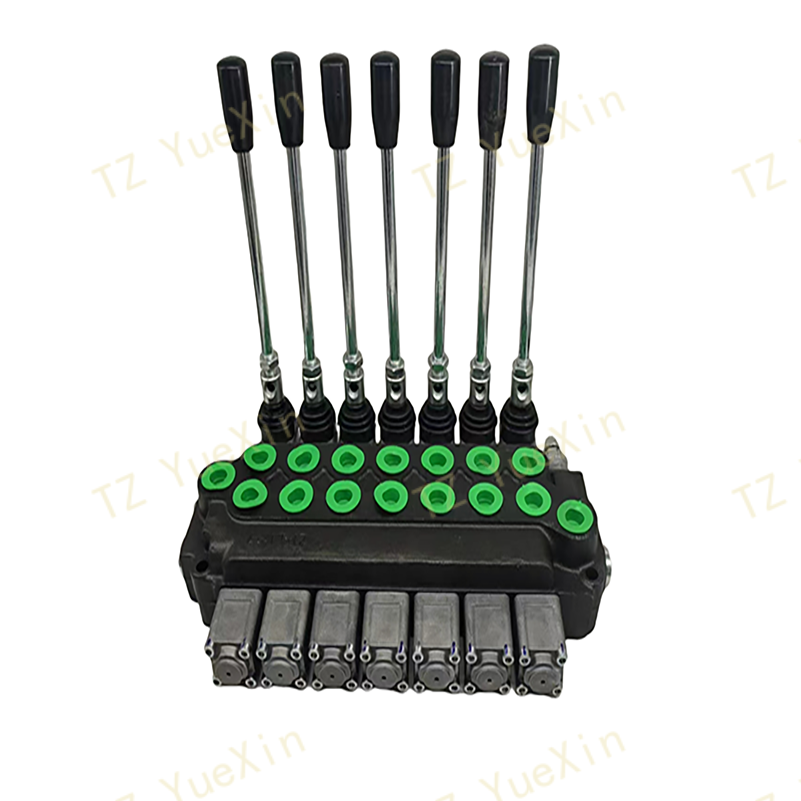

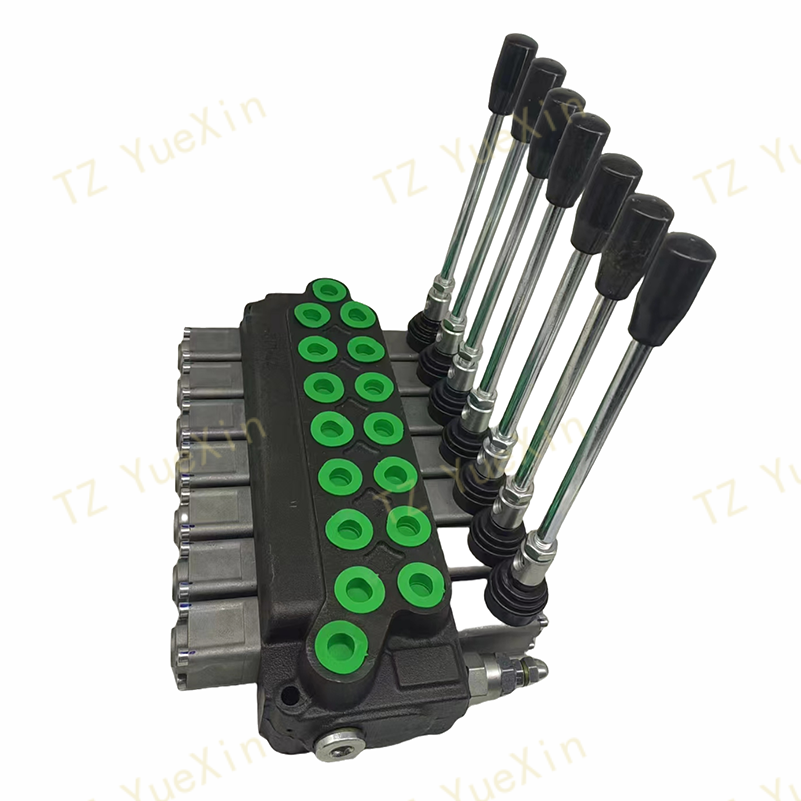

DCV40 Series Control Valves

Integrated valve body
Relief valve, hydraulic lock, one-way valve can be installed on the valve
widely used in the hydraulic system of forklift, environment vehicle and light loading machines

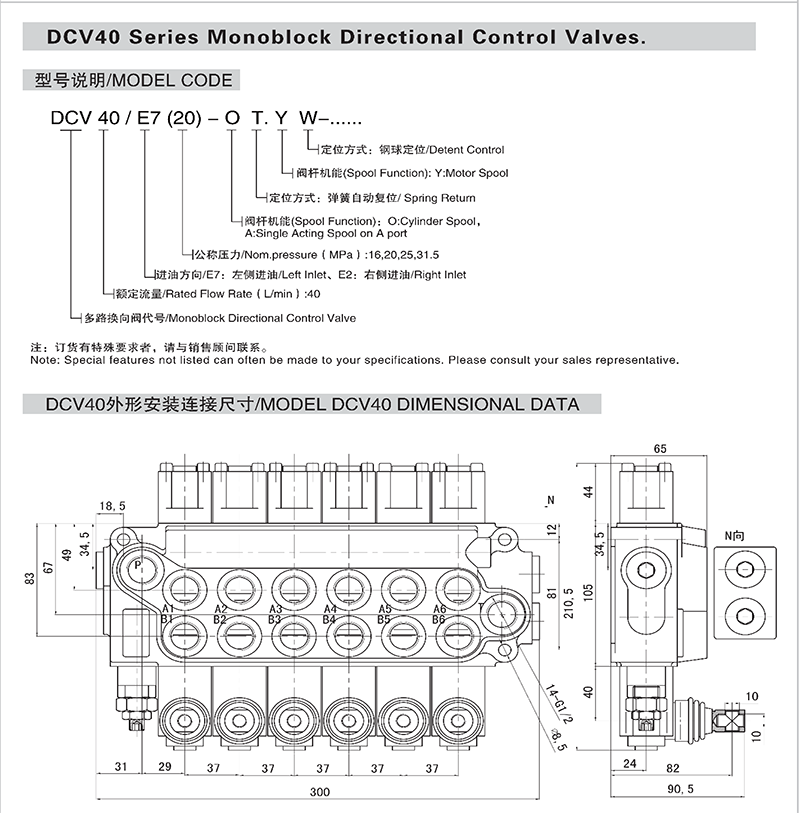

Model DCV40 with middle-high pressure monoblock construction is an independently developed control valves by our company.

Characteristics of valves:

◆ Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be

returned.

◆ Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working

pressure.

◆ Oil way: Parallel circuit,power beyond option

◆ Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

◆ Valve construction: monoblock construction, 1-8 levers.

◆ Spool Function: O,Y, P,A.

◆ Option:Hydraulic lock is available to be added on A and B port.

◆The valve is widely used in the hydraulic system of forklift, environment vehicle and light loading machines.
