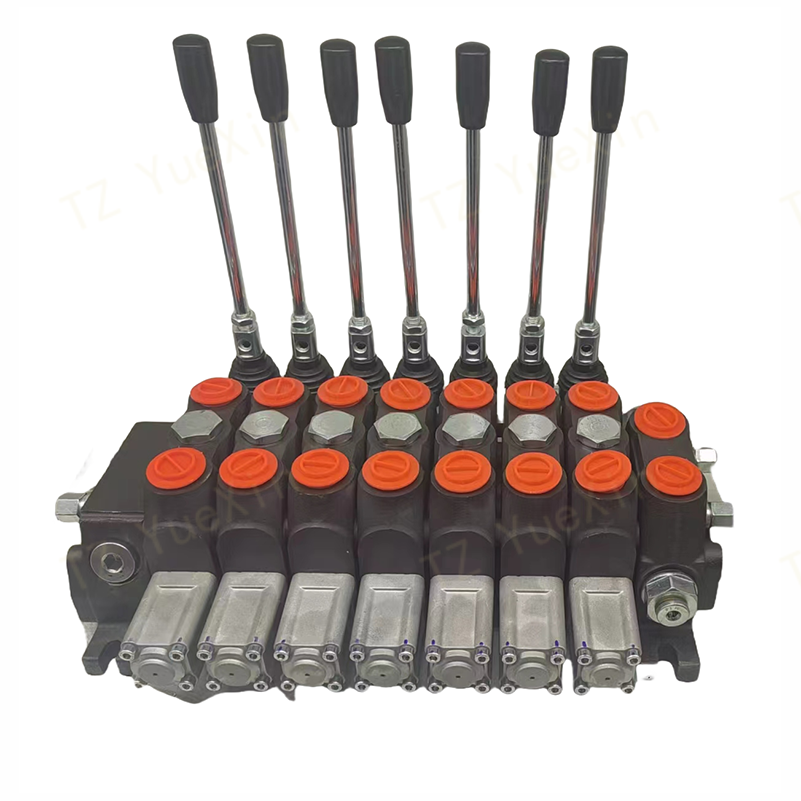

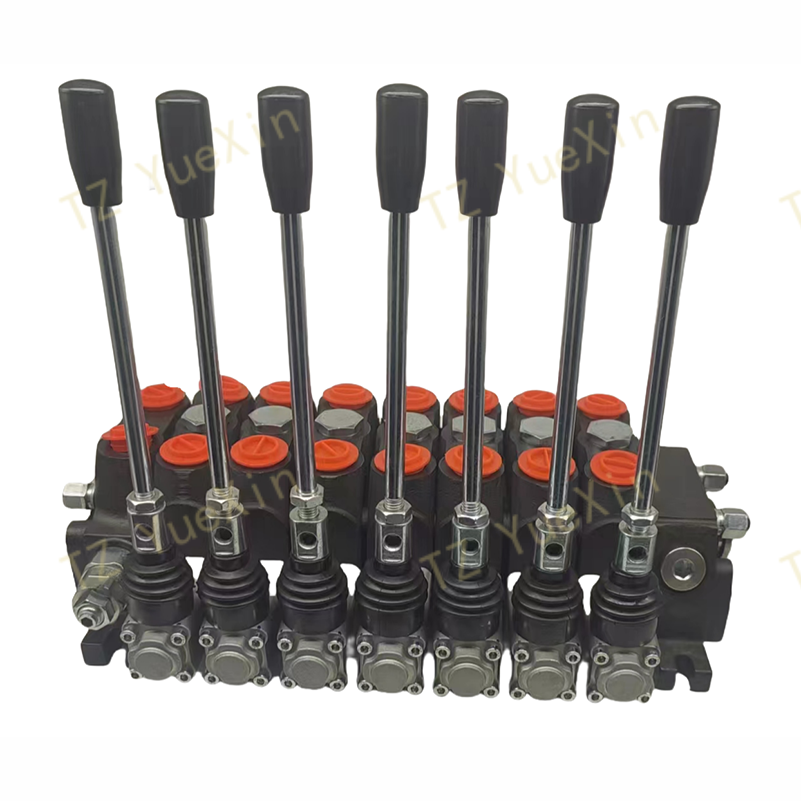

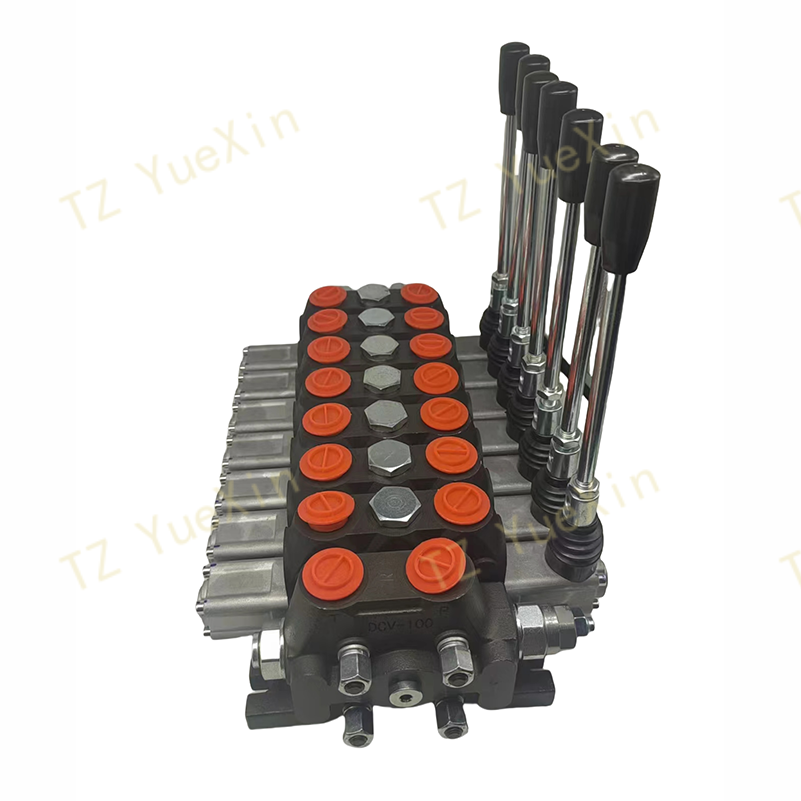

DCV100 Series Control Valves

Segmented valve body
Safety valve, hydraulic lock, and one-way valve can be installed on the valve
Widely used in hydraulic systems of forklifts, environmental trucks, loaders, and excavators

The DCV100 segmented control valve is a control valve independently developed by our company.

Characteristics of valves:

◆ Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be

returned.

◆ Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working

pressure.

◆ Oil way: Parallel circuit,power beyond option

◆ Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

◆ Valve construction: monoblock construction, 1-12 levers.

◆ Spool Function: O,Y, P,A.

◆ Option:Hydraulic lock is available to be added on A and B port.

◆This valve is widely used in hydraulic systems of forklifts, environmentally friendly vehicles, and excavators.
