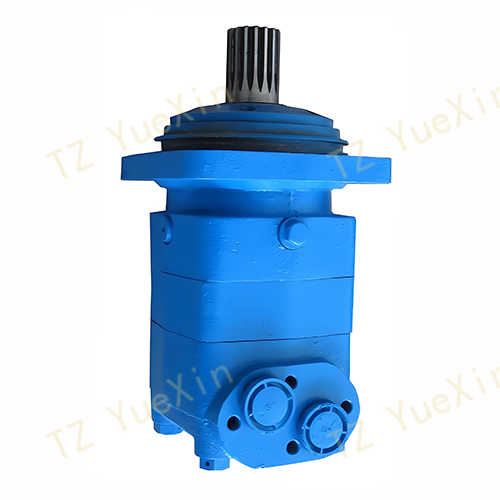

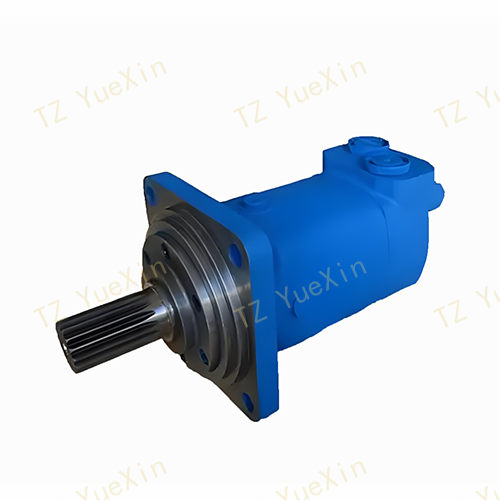

BVM Series Hydraulic Motor
- can replace the Parker TK series

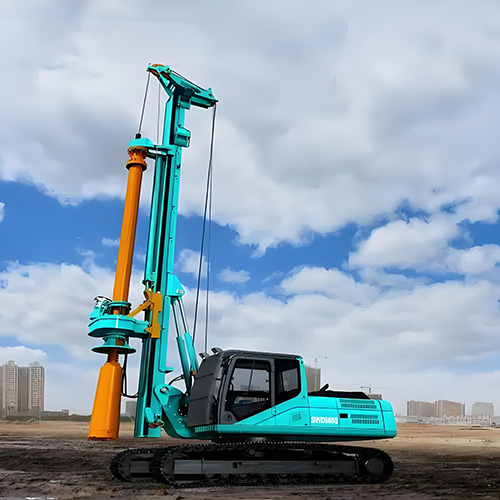

- Used in drilling rigs and winches
BVM (TK) Series Hydraulic Motor Product Details
Application scenarios: Widely used in the field of heavy equipment such as mining machinery, such as drilling rigs, hydraulic winches, skid steer loaders, and trenchers.
Note:Can replace Parker TK series hydraulic motors.
Displacement:315/400/500/630/800.
Shaft extension size: Spline Z16
Max. Speed :250-635rpm.
Max. Torque:1140-3400N.m.
Max. Work pressured：22.5-25Mpa.

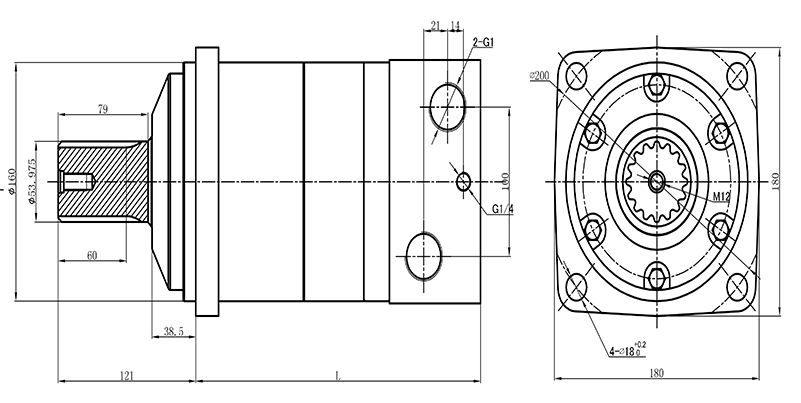

Outline dimension diagram
For specific product information, please contact sales and use the actual communication results as the standard.
