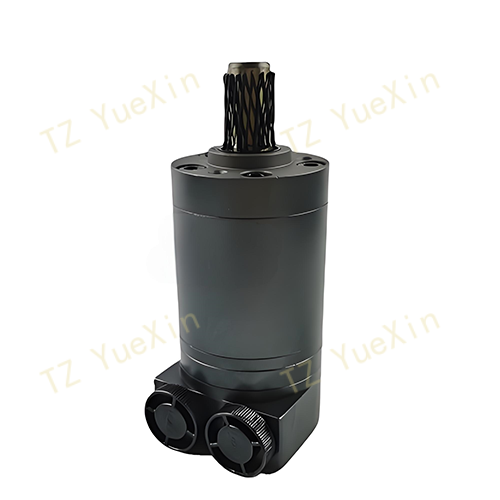

BMM Series Hydraulic Motor
- Can perfectly replace the OMM series
- Suitable for combine walking conveyor belts
BMM(OMM) Series Hydraulic Motor Technical Parameter

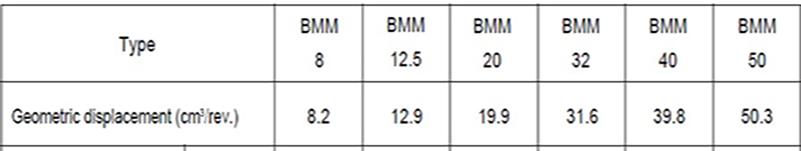

Model and displacement：
Classification of oil port positions: side oil inlet /rear oil inlet.

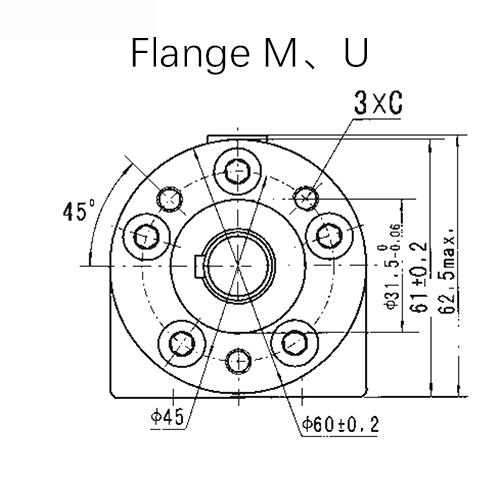

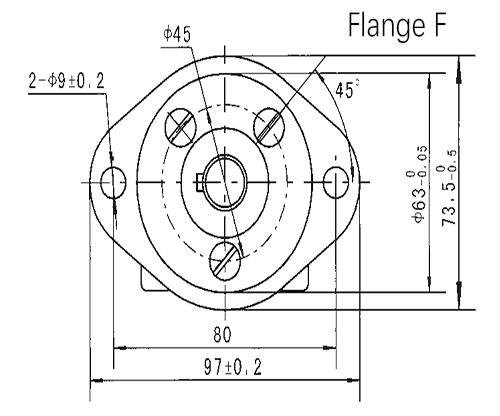

Flange connection method: M、U（circular flange）/F(diamond flange).
Axis extension type：
1、Shaft A: Cylindrical shaft 016Parallel key 5x5x16.
2、Shaft B: Cylindrical shaft 015.875Parallel key 4.8x4.8x19.05.
3、Shaft C: Involute splind shaftB17x14 DIN5482.

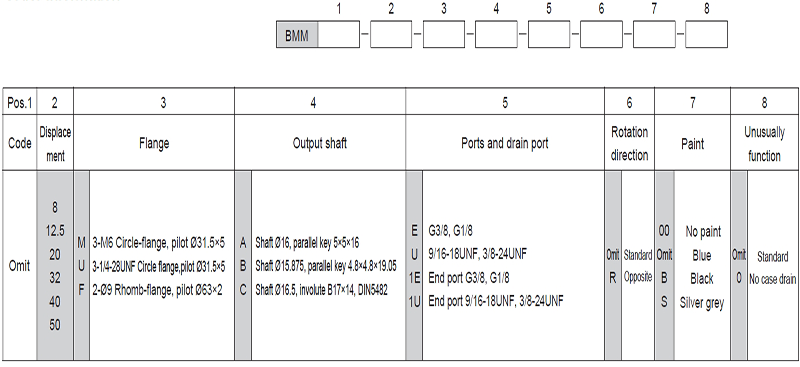

Model Selection:
For specific product information, please contact sales and use the actual communication results as the standard.
